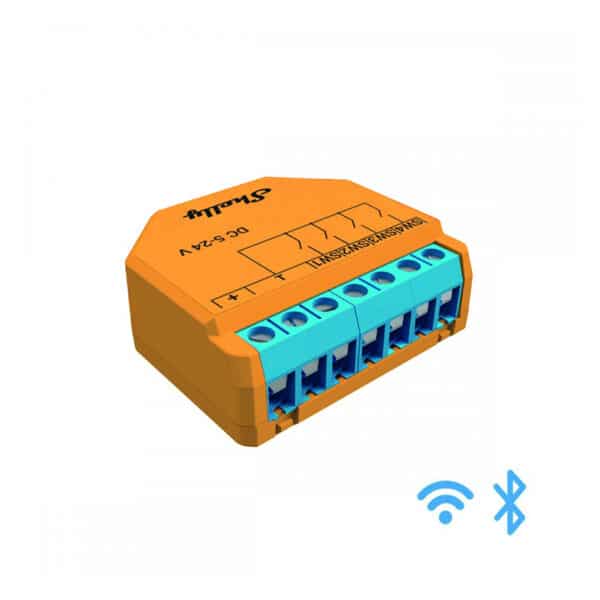

Shelly Plus i4 DC
Out of stock
Turn any wall switch into a powerful scene controller that triggers up to 16 different automations with multi-click actions.
- 4 digital inputs for connecting physical switches or buttons
- Multi-click support – up to 16 possible actions per device
- Trigger scenes, run synchronised actions, or execute complex scenarios
- ESP32 processor with JavaScript support for custom automations
- Fits in standard electrical boxes behind existing switches
- Wi-Fi connectivity with embedded web server
- Works with Alexa, Google Home, Home Assistant, and more
$25.00
Out of stock
CompareShelly Plus i4 DC
The Shelly Plus i4 DC is a Wi-Fi operated 4-digital input controller that transforms physical buttons and switches into powerful smart home triggers. This versatile device allows you to manually activate or deactivate scenes, run synchronised actions across multiple devices, and execute complex automation scenarios with simple button presses.
Powered by the fast ESP32 processor with an improved API interface, the Shelly Plus i4 DC delivers responsive performance for demanding automation tasks. The multi-click functionality supports up to 16 possible actions from each input, enabling sophisticated control schemes from simple button interfaces. JavaScript scripting support opens up possibilities for customised and complex automation scenarios tailored to your specific needs.
Designed to fit in most standard electrical boxes and switches, this compact device installs easily alongside existing electrical infrastructure. The embedded web server connects directly to your Wi-Fi network without requiring a separate hub. The Shelly Plus i4 DC works with the Shelly app and integrates with Amazon Alexa, Google Home, Home Assistant, and other popular automation platforms for comprehensive smart home control.
| Weight | 0.025 kg |
|---|---|
| Dimensions | 0.065 × 0.065 × 0.02 cm |
| Brands | |
| Technology | |
| Smart Home Solution |
Technical Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Weight: | 17 g / 0.6 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 5 – 24 VDC |
| Power consumption: | < 1 W |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
